NEW Inficon Sentrac STRIX H2 leak detector

Inficon Sentrac Strix hydrogen leak detector

New ! The Inficon Sentrac hydrogen leak detector special edition STRIX.

Our standard Inficon Sentrac hydrogen leak detector was already the most modern and advanced leak detector on the market.

With the special STRIX edition we go one step further. Even faster response time !, Even faster recovery time !, Immediately after a large leak also measure a micro leak without delay, Longer sensor life.

The Sentrac STRIX can be widely used for detecting/locating leaks with Forming gas or hydrogen.

Available in both portable and tabletop models.

This new "state of the art" Sensistor hydrogen leak detector works with the unique highly sensitive Sensistor STRIX hydrogen sensor and can be used as a final check in the process industry, but also as a leak detector in the petrochemical or cooling industry.

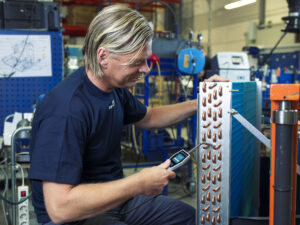

Inficon Strix hand probe

Leak testing with the Sentrac Strix leak detector

Due to the OLED display in the hand probe, the results can be read immediately. The built-in LED lighting provides a good view of the leak location.

In addition to the “detection mode” there is also an “analysis mode”. This allows the leakage to be quantified in, for example, ppm or mbarl/s, etc.

Inficon Strix hand probe

Inficon Strix probe

USERS:

  • Industrial
  • Automotive
  • Aviation and space travel
  • packaging industry
  • RAC
  • Medical industry
  • Process industry
  • Hydrogen applications

OPTIONS:

  • Long flexible hand probe P60
  • Robot probe R50 (especially for use with robot arm)
  • Lance probe P60 (55cm)
  • Various cables 3m / 6m / 9m or custom
  • Reference leaks (for calibration or verification)
  • Calibration gas 10ppm H2

Specifications

Sensitivity: 0,5 ppm H2 in air or 1x10-7 mbarl/s
Response time: < 1 sec
Recovery time: < 1 sec
Battery capacity: Approx. 13h (Portable version)
Dimensions: 330 x 200 x 280 (Portable version)
Weight: 4,8 kg (Portable version)
Calibration: By means of test gas or test leak
Maintenance: No
H2 selective: Ja
Rent: No
