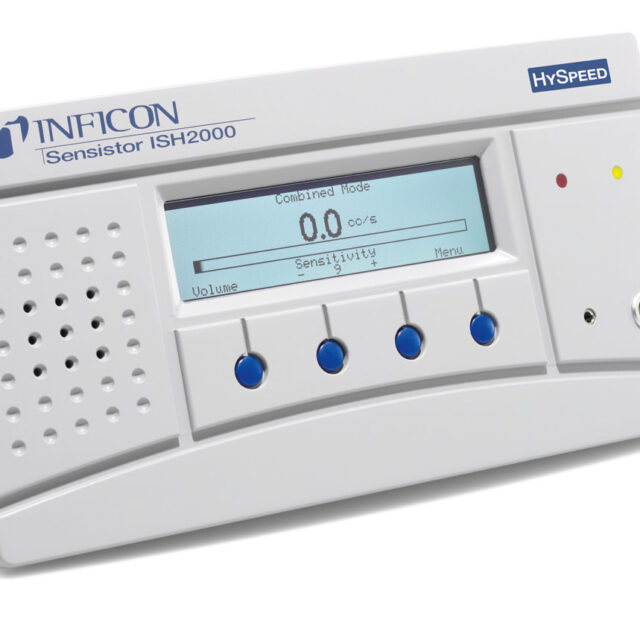

The Sensistor ISH2000 is a robust instrument for professional leak detection both manually and automatically.
The leak detection method is based on trace gas with the safe and economical forming gas. The combination of wide application and user-friendliness, low operating and maintenance costs. This makes the ISH2000 the best option for many applications in production and maintenance applications. You can easily find liquid leaks such as water, fuels or oil, but also large leaks.
The ISH2000 leak detector is available in both a table model, High Speed model, built-in model and portable model.
Benefits
- Leaks are easy to detect due to maximum sensitivity
- Various options make it possible to perform leak tests both automatically and manually
- Low maintenance costs due to the lack of moving parts
- Very short recovery time (Even after finding major leaks)
- Fast response time (<1 sec)
- 100% selective due to unique Sensistor "state of the art" sensor technology
Users
- Industry
- Automotive
- Aviation and space travel
- Packaging industry
- RAC
- Medical industry
- Process industry
Options
- Various probes (Robot probe, built-in probe)
- AP29ECO sampling probe (automatically sucks air from test chamber and analyzes)
- TGF10 trace gas filling unit (automatic filling of application with forming gas)
- AP55 sniffer probe (special probe for leak testing in closed environments)
- Various probe cables 3m, 6m, 9m or custom
- Reference leaks and calibration gas (10ppm)
Specifications
| Sensitivity: | 0,5 ppm H2 or 1x10-7 mbarl/s |
|---|---|
| Response time: | < 1 sec |
| Dimensions (table model): | 275 x 155 x 170 mm |
| Calibration: | 10 ppm H2 or test leak |
| Cross-Sensitive: | No |
| Input / Output: | 25 pin, D-Sub 24 VDC / 0,5A, RS232 |
| Rent: | No |
